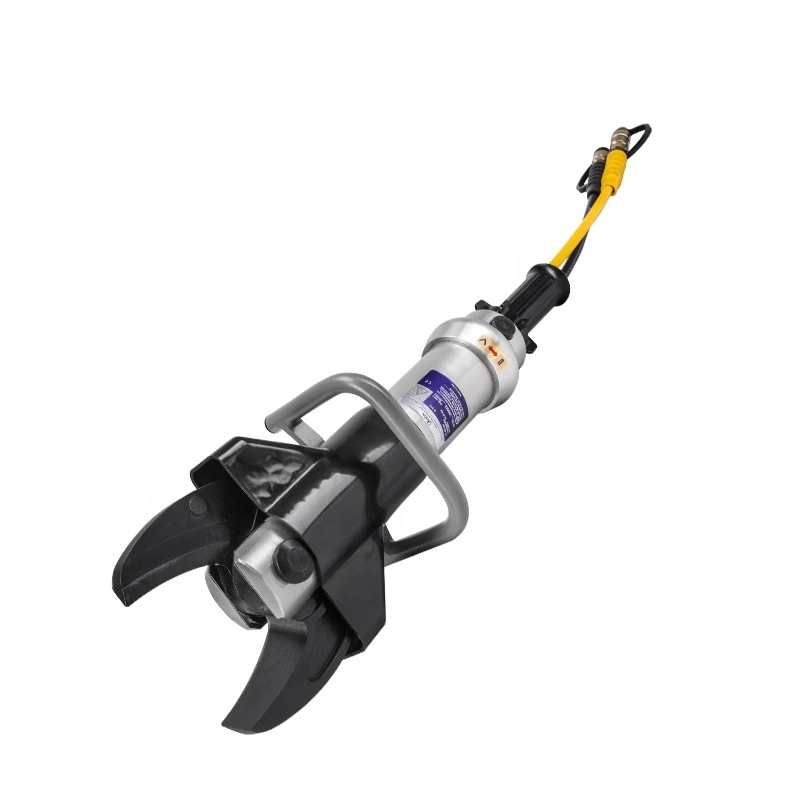

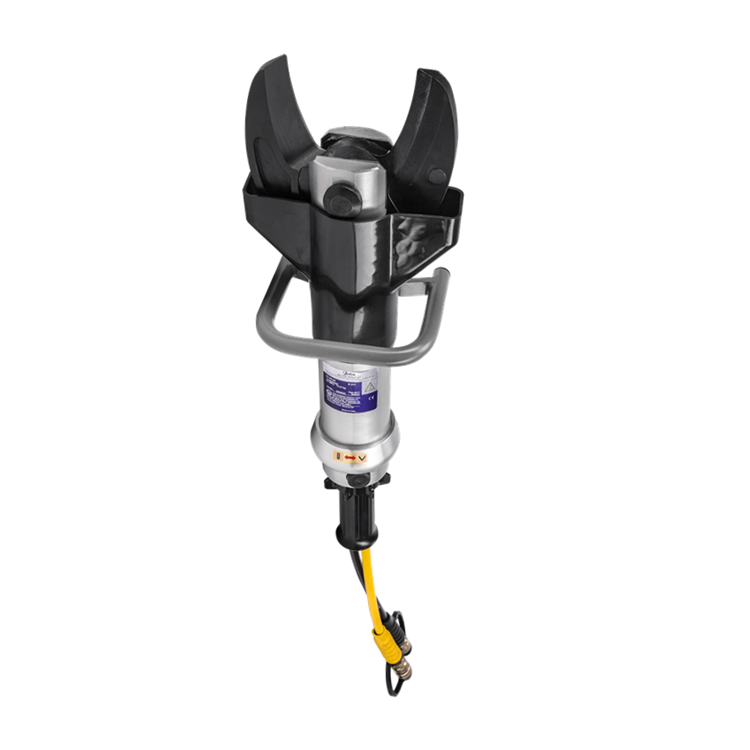

ODETOOLS Fire Emergency Rescue Tool S211 Battery Rescue Tool Lightweight Hydraulic Cutter

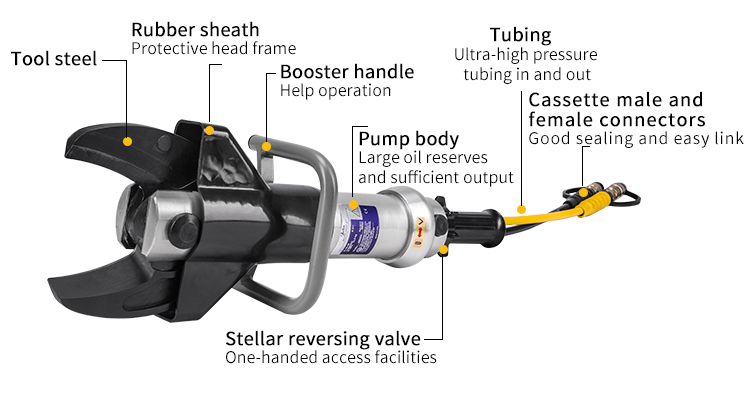

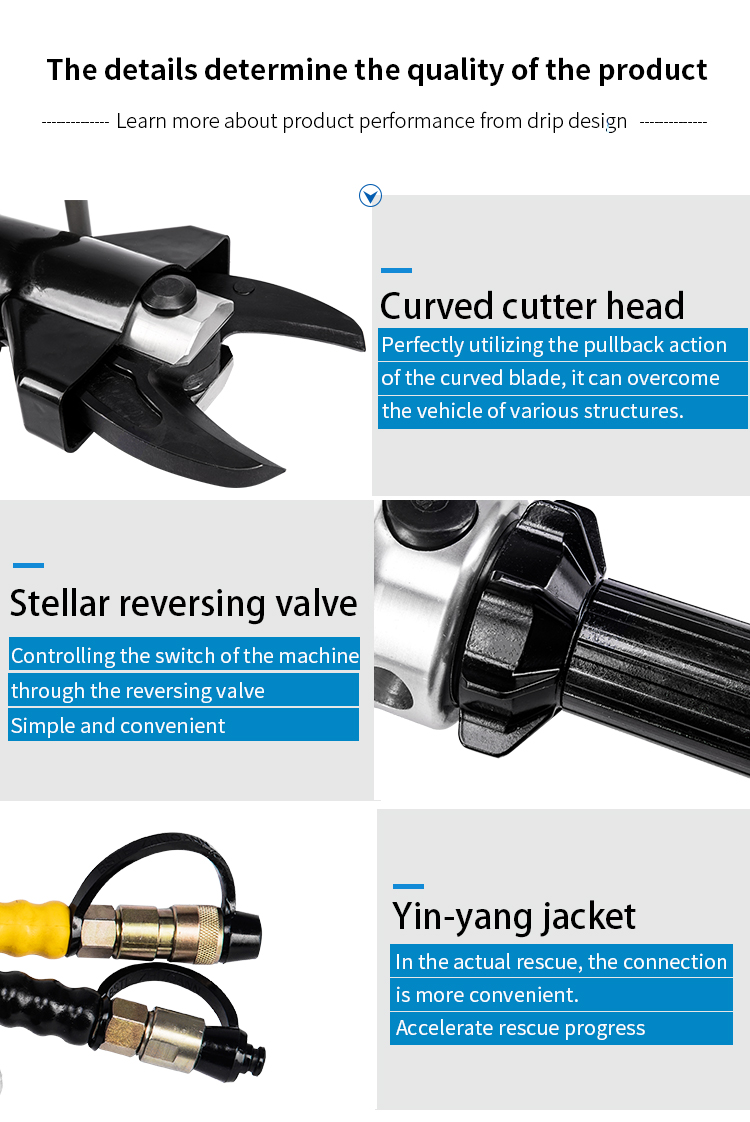

Hydraulic shears are mainly composed of hydraulic pumps, hydraulic cylinders, shear blades and control devices. Its working principle is to use high-pressure hydraulic oil to push the piston to produce strong shear force, so that the target object plastic deformation or fracture. This design emphasises portability, operational flexibility and high efficiency, and is capable of completing complex tasks in confined spaces, buying valuable time for life-saving efforts.
Availability:
Quantity:
  • S211

  • ODE

  • 12030426

Product Description

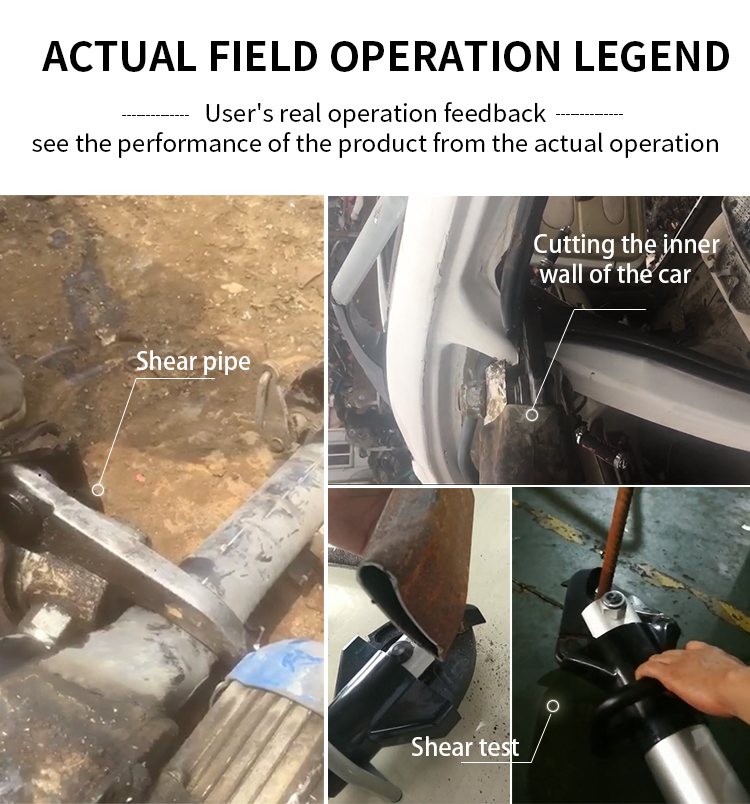

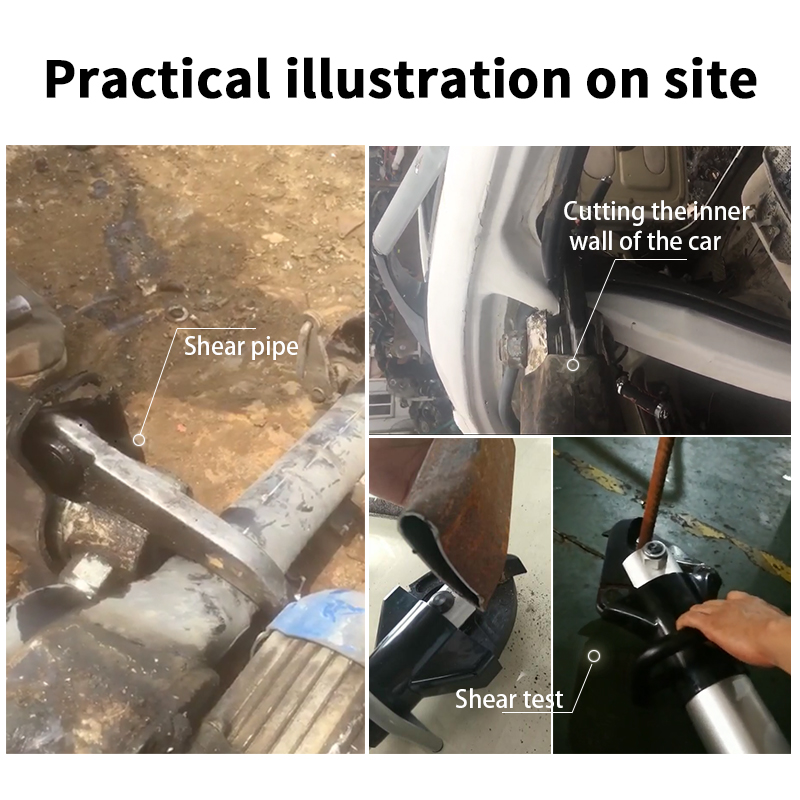

Hydraulic shears are widely used in various emergency rescue scenarios, including:


Traffic accident rescue: quickly cut open the deformed car body to provide access for rescuers.

Earthquake disaster rescue: remove obstacles in the reinforced concrete rubble, direct access to the buried personnel.

Building collapse rescue: shear metal structures, pipelines and other obstacles to free trapped people.

Air and sea disaster rescue: cutting vehicle components and metal structures to provide emergency access


Hydraulic Cutter S211 Working pressure 72MPa
Max Opening distance 230mm
Max cutting force 600 kN
Max. cutting capacity (Q235) Ø30mm(Round steel/8mm steel plate
Max.cutting power 29.3T
Net Weight ≤14.2kg

主图1
