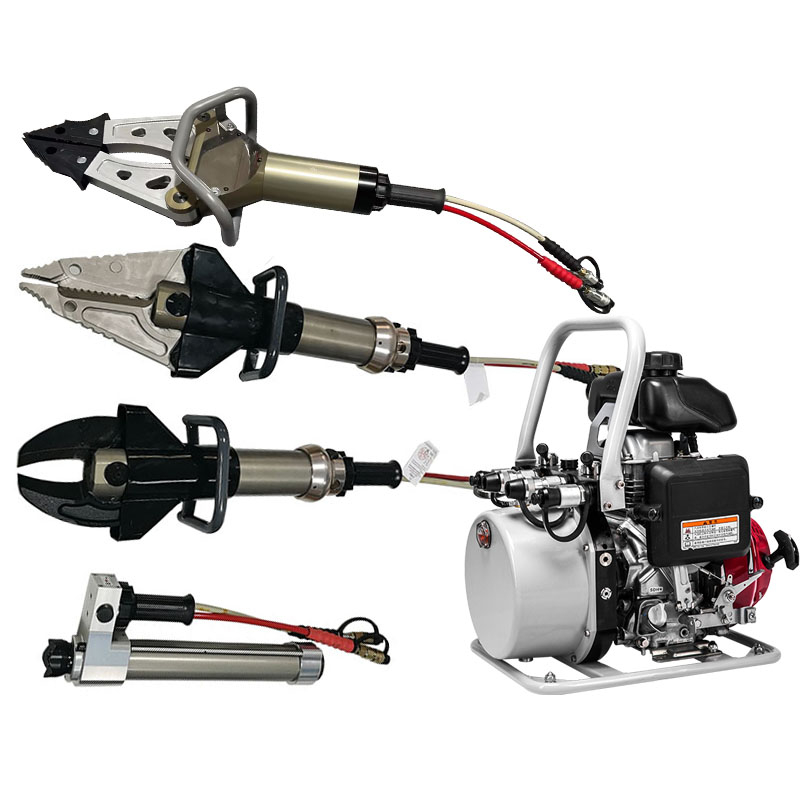

The Medium Duty Hydraulic Breaking and Rescue Tool Set is designed for emergency rescue and is widely used in firefighting, traffic police, earthquake rescue and car accident scenes. The tool set integrates a variety of hydraulic tools to meet different rescue needs and ensure fast and efficient handling of emergencies.
Main Features
High performance: powerful hydraulic system provides stable pressure output for a variety of breaking and demolition tasks.
Versatility: The tool set contains a variety of equipment such as cutters, spreaders, pry bars, etc. to meet the rescue needs of different scenarios.
Portable design: lightweight structure and compact package facilitate rapid deployment and movement on site.
Durability: Made of high-strength materials with excellent anti-wear and corrosion resistance to ensure long-term reliable use.
User-friendly: Intuitive operation interface and easy-to-use methods reduce operation difficulty and improve rescue efficiency.
| Model: | |
|---|---|
| Quantity: | |
SC257 SP210 S211 R410 BJQ-63/0.66A
ODE
hydraulic rescue tools

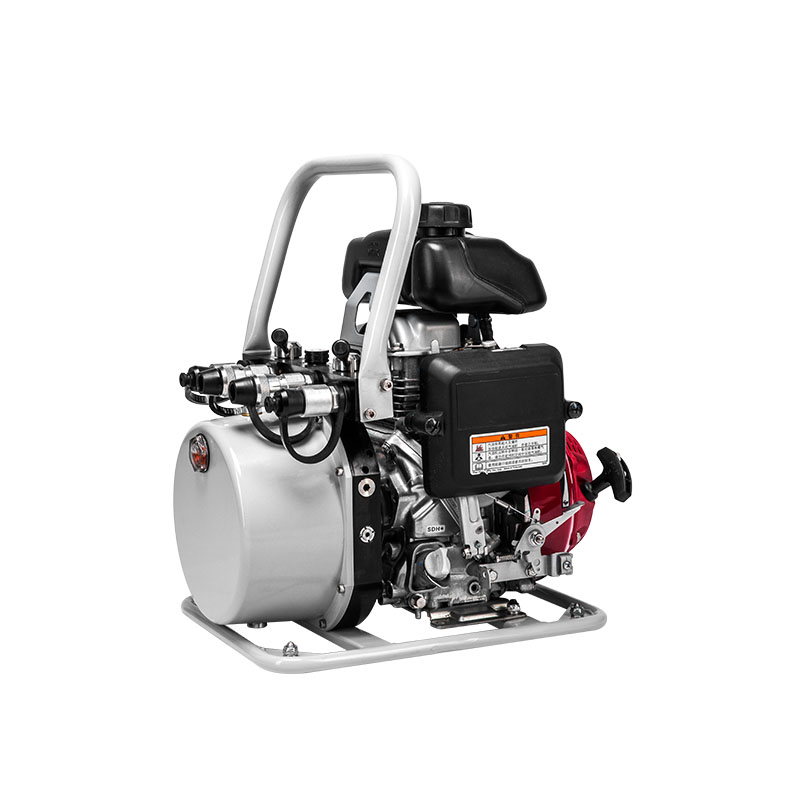

| 11010002 | Dual-output Motor Pump | P620SGB BJQ-63/0.66A | Rated working pressure 720 bar × 2 Working speed 3600±150 rpm Engine power 2.2 kW High/low pressure flow 2*0.66 L/min; 2*2.0L/min Hydraulic Oil tank:2.2 L Gasoline tank:1.2L Net/Gross weight 24.6kg Dimensions: 490 x 310 x 400 mm Accessories: 2 sets of 5-meter hoses |

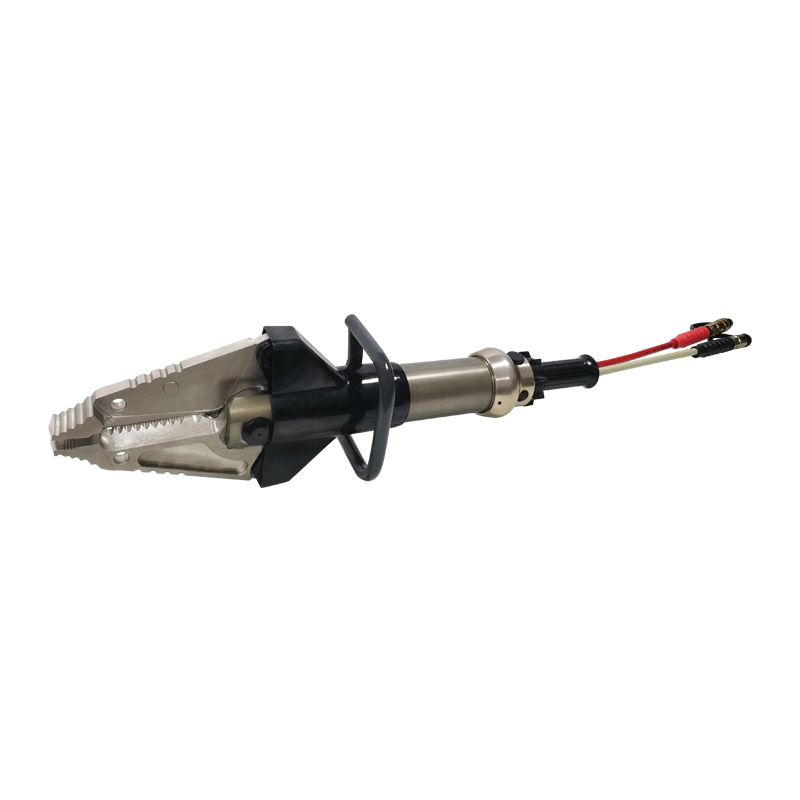

| 12030482 | Hydraulic combi tool | SC257 | Rated working pressure 72MPa Max cutting force 600 kN Cutting diameter Ø30 mm Q235 round steel 8 mm Q235 steel plate" Max spreading force 30-64kN Max Spreading distance 380 mm Max cutting opening distance 280mm Pulling force 52 kN Pulling distance 290 mm Net weight 15.1kg |

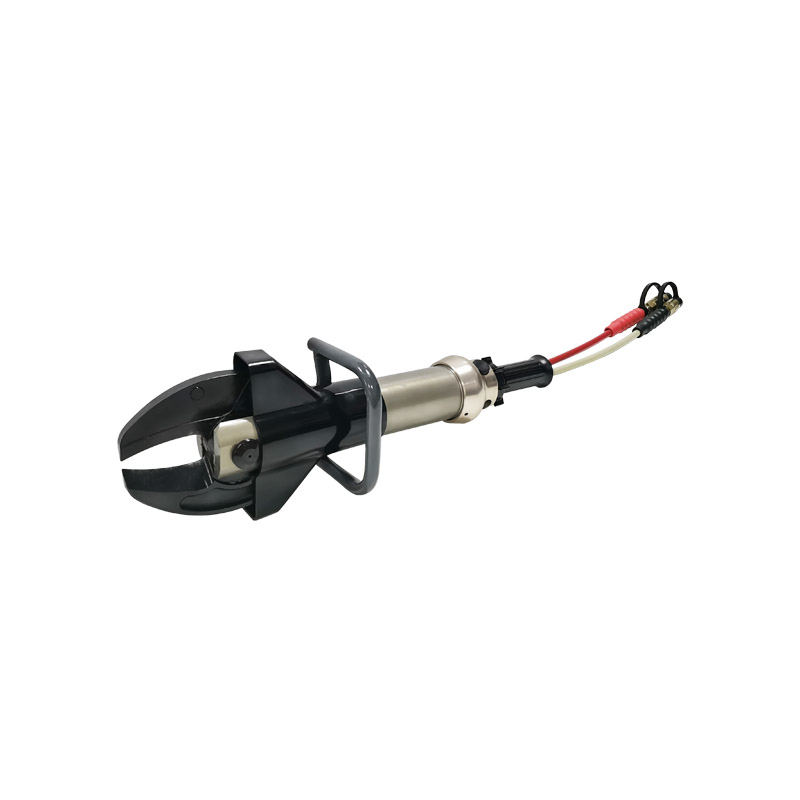

| 12030426 | Hydraulic Cutter | S211 | Working pressure 72MPa Max Opening distance 230mm Max cutting force 600 kN Max. cutting capacity (Q235) Ø30mm(Round steel/8mm steel plate Max.cutting power 29.3T Net Weight ≤14.2kg |

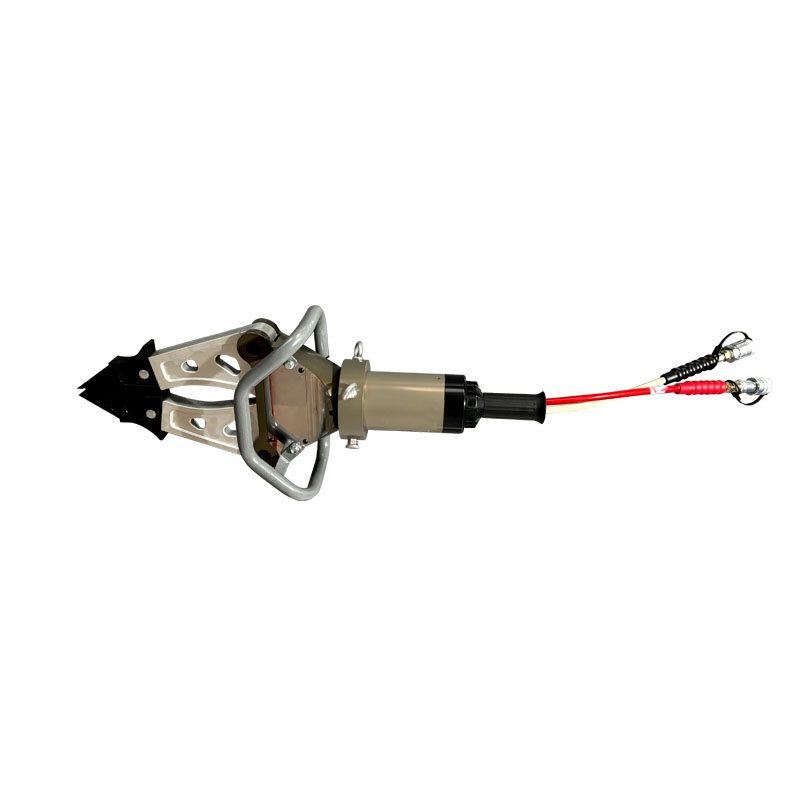

| 12030080 | Hydraulic spreader | SP210 | Working pressure 72MPa Max.spreading force:35-80KN Max. spreading distance ≥610mm Pulling distance 537mm Max Pulling force 48KN Net Weight 18.9Kg |

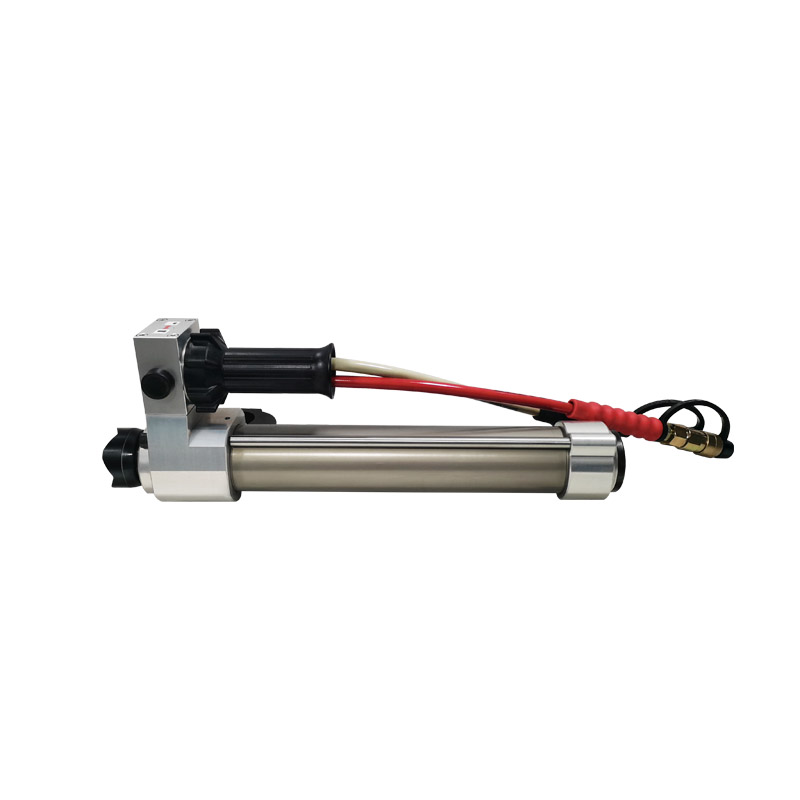

| 12040002 | Hydraulic RAM | R410 | Rated working pressure 72MPa Total lifting stroke 400 mm Lifting force 140KN Extension range 540-940 mm Net weight 11.5 kg Dimensions: 540x100x200mm |
| 11010056 | Manual Pump | BS-63 | Rated working pressure 72MPa Oil volume 2.4L Low pressure output 50-100 bar High pressure flow 2.57 ml/times Low pressure flow 17ml/times Max. handle force 264 N Net weight 7.8kg Dimensions: 730x158x158mm |
