We are a professional Chinese manufacturer of hydraulic rescue equipment. Our lightweight single-port hydraulic breaking and rescue tool set includes hydraulic cutter, spreader, ram and supporting 720 bar hydraulic pump. It supports hot-swap connection under pressure for efficient rescue operations. All products hold complete CE certificates. We offer factory wholesale and OEM service. Brand authorization documents can be provided for fire protection tender projects. The products are widely used in firefighting, traffic accident rescue, earthquake and other disaster rescue scenarios.
| Model: | |
|---|---|
| Quantity: | |

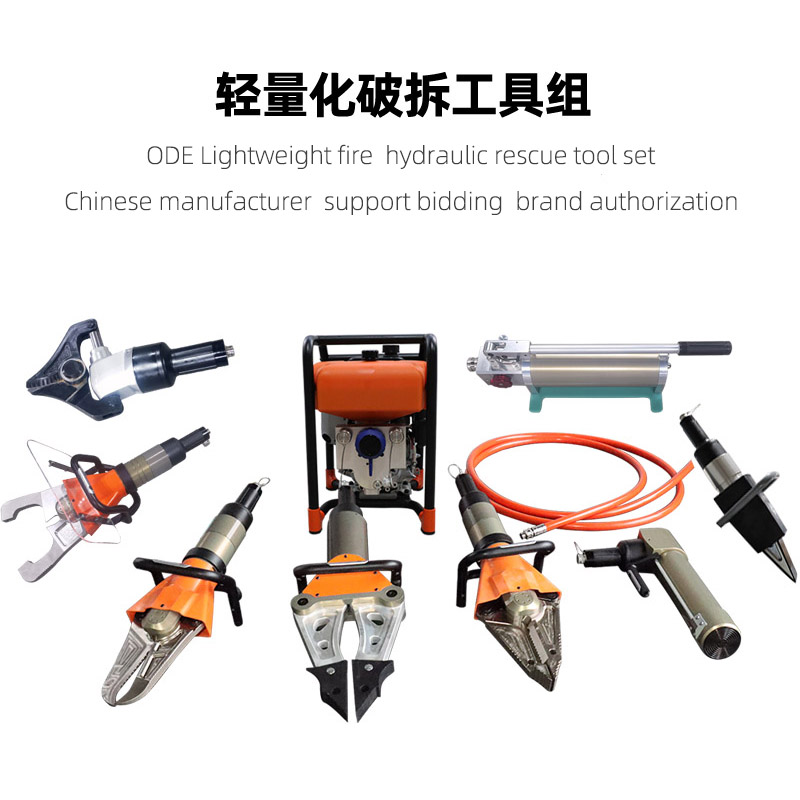

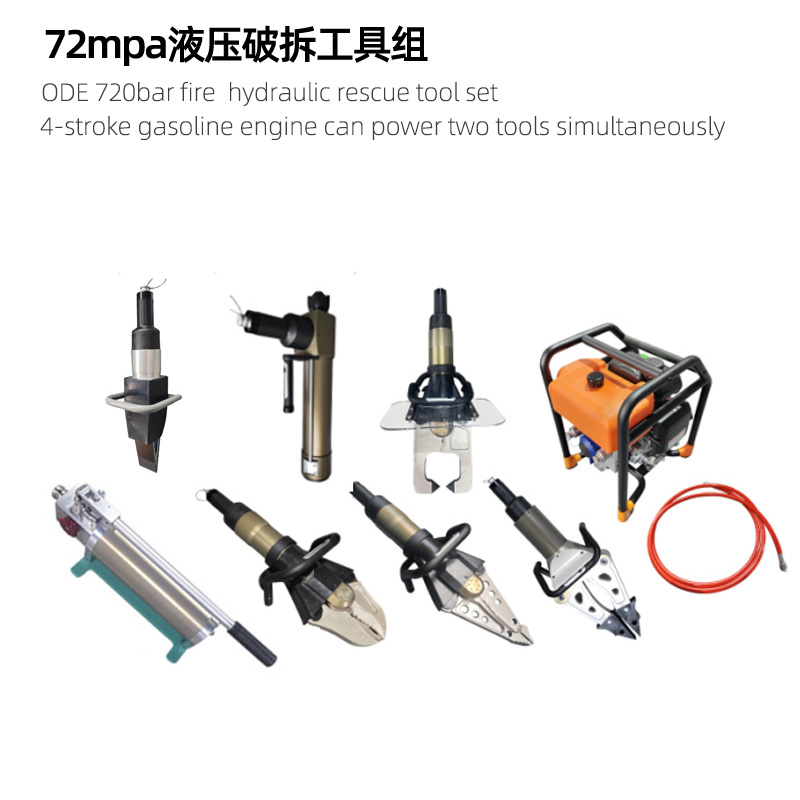

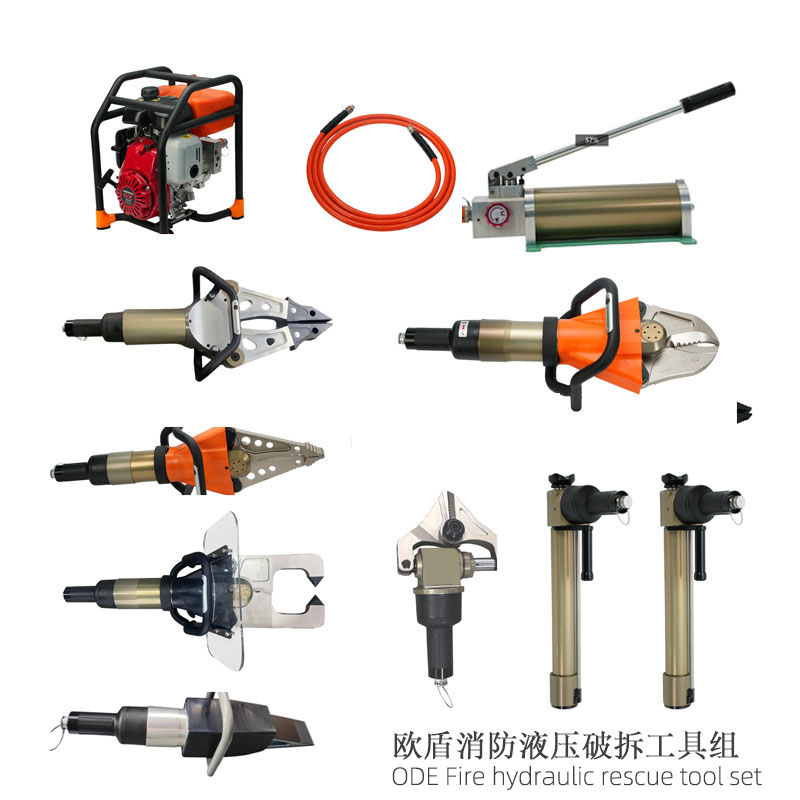

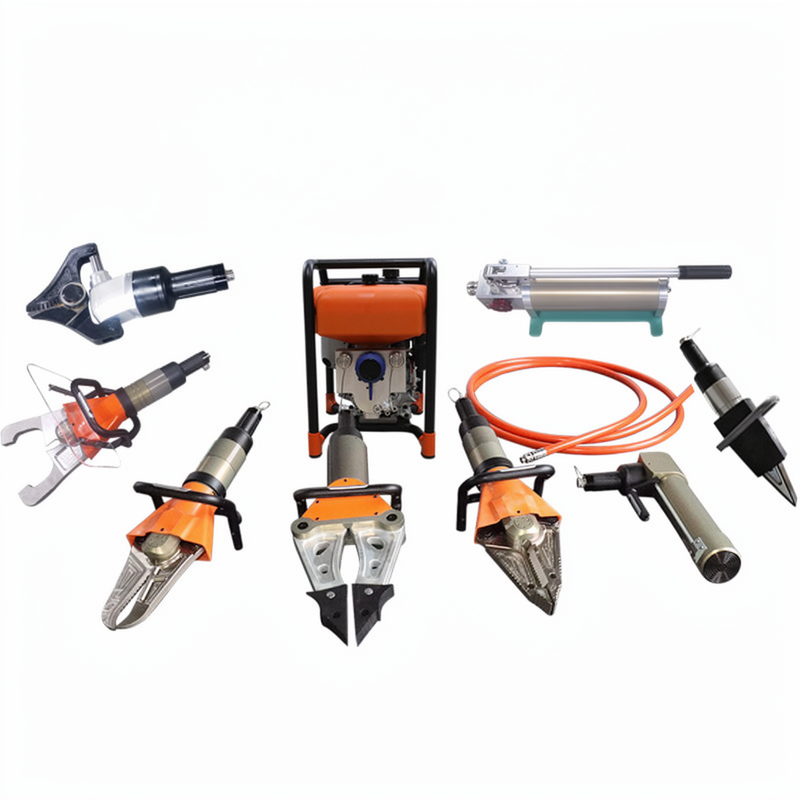

720 Bar Series Hydraulic Breaking & Rescue Tool Set
ODE
hydraulic rescue tools
| Article number | Product Name | model | Product Specifications |
| 11010004 | Double output Engine Pump | MDP220 | Rated working pressure: ≥ 72 Mpa, equipped with double-flow function for pressure boosting 4-stroke engine power: 2.2 KW Rated working speed: ≥ 3600 r/min; High pressure / high speed mode flow: 0.84 / 1.65 L/min Low pressure / high speed mode flow: 3.5 / 6.95 L/min; Hydraulic oil tank volume: ≥ 4.5 L; Weight: ≤ 23 kg (including hydraulic oil and engine oil) Overall Dimensions: 395 x 315 x 483mm |
| 12030017 | Hydraulic combi tool | SC507-L | Rated working pressure 72Mpa Max cutting force 780kN Cutting diameter Ø32mm round bar/ 12mm Q235 Spreading force 40-80kN Spreading distance 395 mm Squeezing force 180KN Pulling force 80 kN Pulling distance 300 mm Netweight 14.7kg Dimension:780x240x230mm |
| 12030208 | hydraulic Cutter | S251-L | Rated working pressure 72Mpa Max cutting force 940kN Cutting diameter Ø40 mm Q235 round steel Opening distance 250 mm Net weight 12.5 kg Dimension:700*220*170mm |
| 12030019 | Hydraulic spreader | SP725-L | Rated working pressure 72Mpa Spreading force 38-65kN Max spreading distance 740mm Max pulling distance 640mm Pulling force 52 kN Weight: 16.7kg Dimension:840x270x240mm |
| 12040005 | 1-stage hydraulic Ram | R901B | Rated working pressure: 72Mpa Lifting force ≥141KN Closed length: 550MM Lifting height 350mm lifting distance 550-900mm Weight: 10.9kg Dimension:550x285x95mm |
| 12040020 | 2-stage hydraulic Ram | R522-L | Rated working pressure: 72Mpa Closed length: 560MM Level 1 Lifting height 935mm Level 1 Lifting force 275KN Level 2 Lifting height 1285mm Level 2 Lifting force 140kN Weight 17.7kg Dimension:560x110x295mm |
| 12030241 | Hydraulic combi tool | SC370-L | Rated working pressure 72Mpa Max cutting force 940kN Cutting diameter Ø38mm round bar/ 12mm Q235 Spreading force 50kN Spreading distance 390 mm Squeezing force 180KN Pulling force 95kN Pulling distance 300 mm Netweight 13.5kg Dimension:780x240x230mm |
| 12030018 | hydraulic Cutter | S501-L | Rated working pressure 72Mpa Max cutting force 780kN Cutting diameter Ø36 mm Q235 round steel/12mm steel plate Opening distance 325 mm Net weight 14.6 kg Dimension:780x240x230mm |
| 12030023 | Mini Cutter | S61-L | Rated working pressure 72Mpa Max cutting force 180kN Cutting diameter Ø22 mm Q235 round steel/8mm thickness steel plate Opening distance 60 mm NW 3.9kg Dimension: 385x130x90mm |
| 12030248 | Universal cutter | S60-L1 | Rated working pressure 72Mpa Max opening distance: 68mm Max cutting capacity Ø20 mm Q235 round steel NW 5.7kg Dimension:395x235x100mm |
| 12040152 | Bi-directional Ram | TR940-L | Number of plungers 2 Working pressure: 72Mpa No-load opening time: 60s±5s No-load closing time: 52s±5s Closing length: 938mm Lifting length: 1629mm Lifting stroke: 345.5mm*2 lifting force: 170kN Weight: 16.6kg Dimension:940x135x350mm |
| 11010006 | Hand Pump | P620ASL | Rated working pressure: 72Mpa Oil tank capacity: 2.4L High pressure flow: 2.57ml/time Low pressure flow: 17.42ml/time Max. handle force: 265N Net weight: 8kg Dimension: 610x158x158mm |
| 12070005 | Concrete Crusher | CS350-L | Rated working pressure: 72Mpa Breaking force:90KN Cutting force:760KN Opening distance: 350mm Cutting opening distance:125mm Cutting capacity: Ф32mm round steel (Q235) 115mm concrete floor Weight: 17kg Dimension:790x370x310mm |
| 12080012 | Hydraulic Wedge | KFC050-L | Rated pressure 700bar Max spreading distance: 55mm Maxspreaing force:300KN Min insertion slit 2mm Weight 9.8 kg Dimension: 595x180x215mm |
| 12030437 | Hydraulic Cutter | S175-L | Rated Working Pressure: ≥72 MPa Maximum cutting Force: ≥604 kN cutting Capacity: ≤φ30 mm round steel (Q235A material) Maximum Opening Distance: ≥170 mm Weight: ≤9.5 kg Dimensions (L*W*H): 690*215*200 mm |
| 12030439 | Hydraulic Combi Tool | SC280-L | Rated Working Pressure: ≥72 MPa Maximum cutting Force: ≥32 kN cutting Capacity: ≥φ25 mm round steel (Q235A material) Minimum Spreading Force: ≥14.4 kN Maximum Spreading Distance: ≥280 mm Pulling Distance: ≥205 mm Weight: 7.8 kg Dimensions (L*W*H): 670*210*205 mm |
| 12040280 | Hydraulic Ram | R562-L | Rated Working Pressure: ≥72 MPa First-stage Lifting Stroke: ≥400 mm First-stage Lifting Force: ≥110 kN Closed Length: ≤567 mm Extended Length: ≥967 mm Dimensions (L*W*H): 567*92*260 mm Weight: ≤8.2 kg |
| 12030438 | H-type flat-head shaft center interface hydraulic spreader | SP501-L | Rated working pressure: ≥72Mpa Minimum expansion force: ≥40KN (actual measurement 38KN); Maximum expansion distance: ≥500mm Maximum pulling distance: ≥390mm Dimensions (L x W x H): 670x245x175mm Weight: ≤9.7kg; |
