SC370-E，SP725-E，S251-E，R322-E
ODE
12030165/12030453/12030258/12040028
ODE Combi tool SC370-E
Battery type DC 28V 5Ah
Rated working pressure 720bar
Max cutting force 940kN
Cutting capacity
Φ38mm Q235 round steel
20mm Q235 steel plate
Max spreading force 45-145kN
Max spreading distance 390mm
Max squeezing force≥153kN
Pulling force 95kN
Pulling distance 300mm
Net weight: 18.5 kg
Dimension:960x230x270mm
Packing:one pc of /Plastic box/cardboard ctn
2pcs of batteries,1 pc of charger,1 pc of belt
EN13204 approved

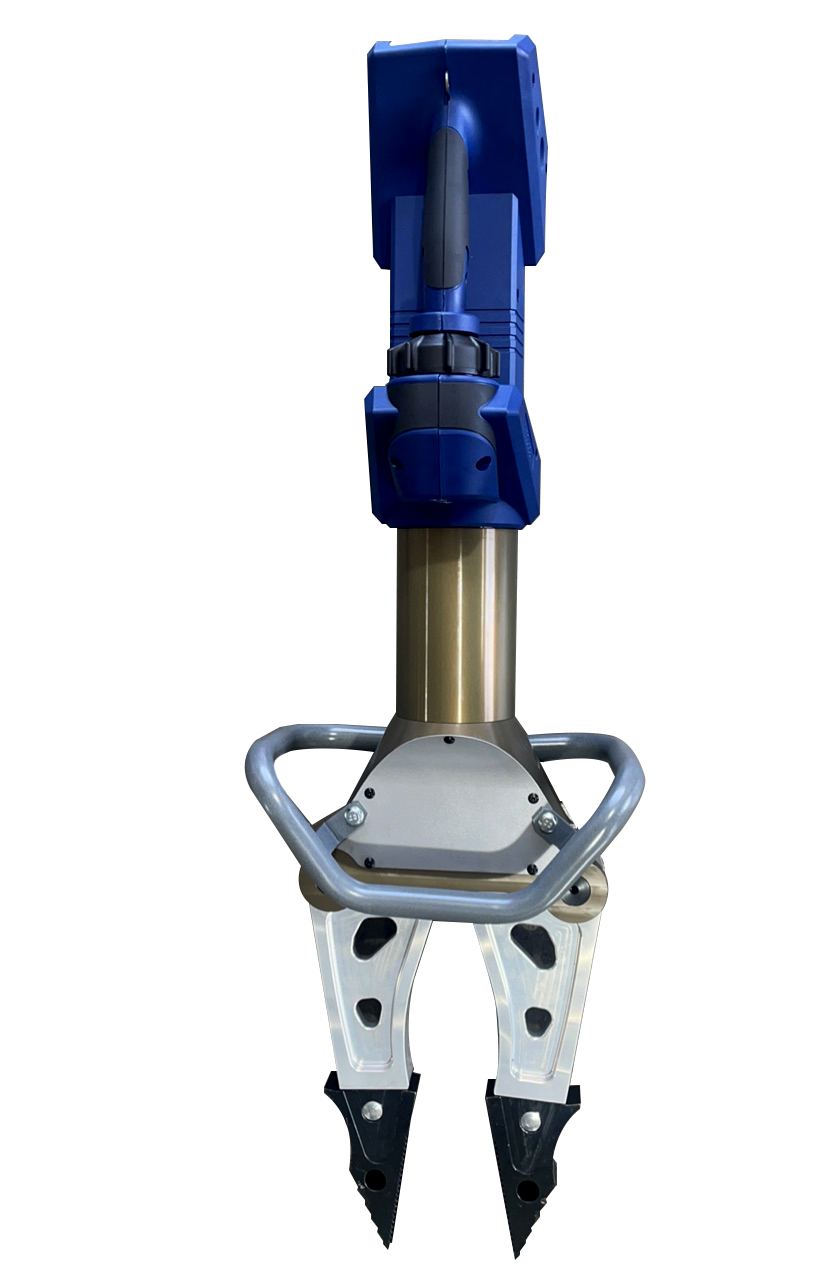

ODE Battery spreader SP725-E
Lithium battery power, the tool is equipped with a power display function and LED night lighting system,An alarm will be displayed when the power is less than 20%.
Battery type DC 28V 5.0Ah
Rated working pressure 720bar
Max spreading force 38-65kN
Max spreading distance 740mm
Max squezzing force 95KN
Max pulling force 35kN
Max pulling distance 640mm
Net weight 22.6kg
Dimension:1060x340x270mm
2pcs of batteries,1 pc of charger,1 pc of belt
EN13204 approved
ODE battery rescue cutter S251-E
Battery type DC 28V 5.0Ah
Rated working pressure 720bar
Max cutting force 940kN
Max Opening distance:250mm
Cutting diameter
Φ40mm Q235A round steel
20mm Q235A steel plate
Net weight 17 kg
Dimension:890x220x270mm
2pcs of batteries,1 pc of charger,1 pc of belt
EN13204 approved

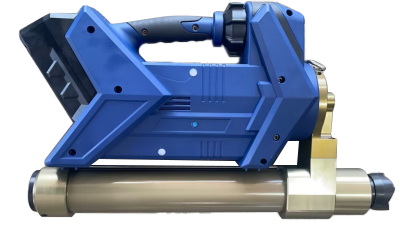

ODE 2 stage Electric Ram R322-E
working pressure 72Mpa
1st stage lifting force 140kN,
1st stage stroke:400mm,
2nd stage lifting force 70KN,
2nd stage stroke 395mm,
closing height 590mm,
extension height 1385mm,
weight 21.4kg
Dimension:590x150x360mm
2pcs of batteries,1 pc of charger,1 pc of belt
Packing:one pc of /Plastic box/cardboard ctn
| Product name | Battery hydraulic spreader and cutter |
| Battery type | DC 28V 5Ah |
| Rated working pressure | 720bar |
| Max cutting force | 380kN |
| Cutting capacity | ∅32mm Q235 round steel ∅16mm Q235 steel plate |
| Max spreading force | 58.07kN |
| Max spreading distance | 360mm |
| Pulling force | 58kN |
| Pulling distance | 305mm |
| Weight | 18.9kg（without battery） |
| Gross weight | 34.4 kg |
| Machine Size | 929x246x287mm |
| Carton size | 1100x315x380 mm |
