Medium Electric Hydraulic Cutting And Spreading Tool SC370-EVersatile Medium-Sized Pliers for Efficient Metal Cutting And Spreading

Medium Electric Hydraulic Cutting And Spreading Tool SC370-EVersatile Medium-Sized Pliers for Efficient Metal Cutting And Spreading

This comprehensive Electric Hydraulic Demolition Tool Set is designed for Medium-Sized applications, featuring a combination of cutting, spreading, and shearing tools. Ideal for construction, rescue operations, and industrial use, this versatile set ensures maximum efficiency and safety.

Availability:

Quantity:



Inquire Add to Basket

Model:
SC370-E
Brand:
ODE
Code:
12030165

Product Description

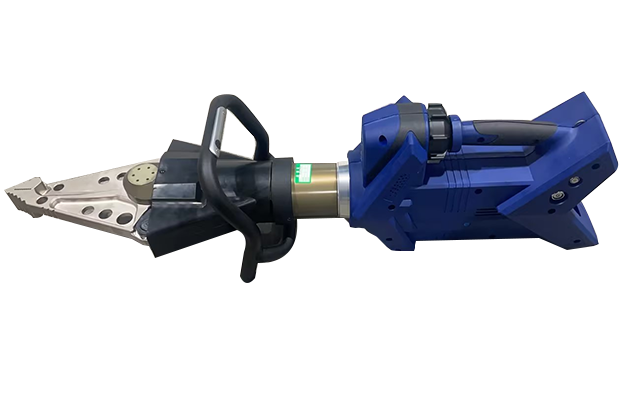

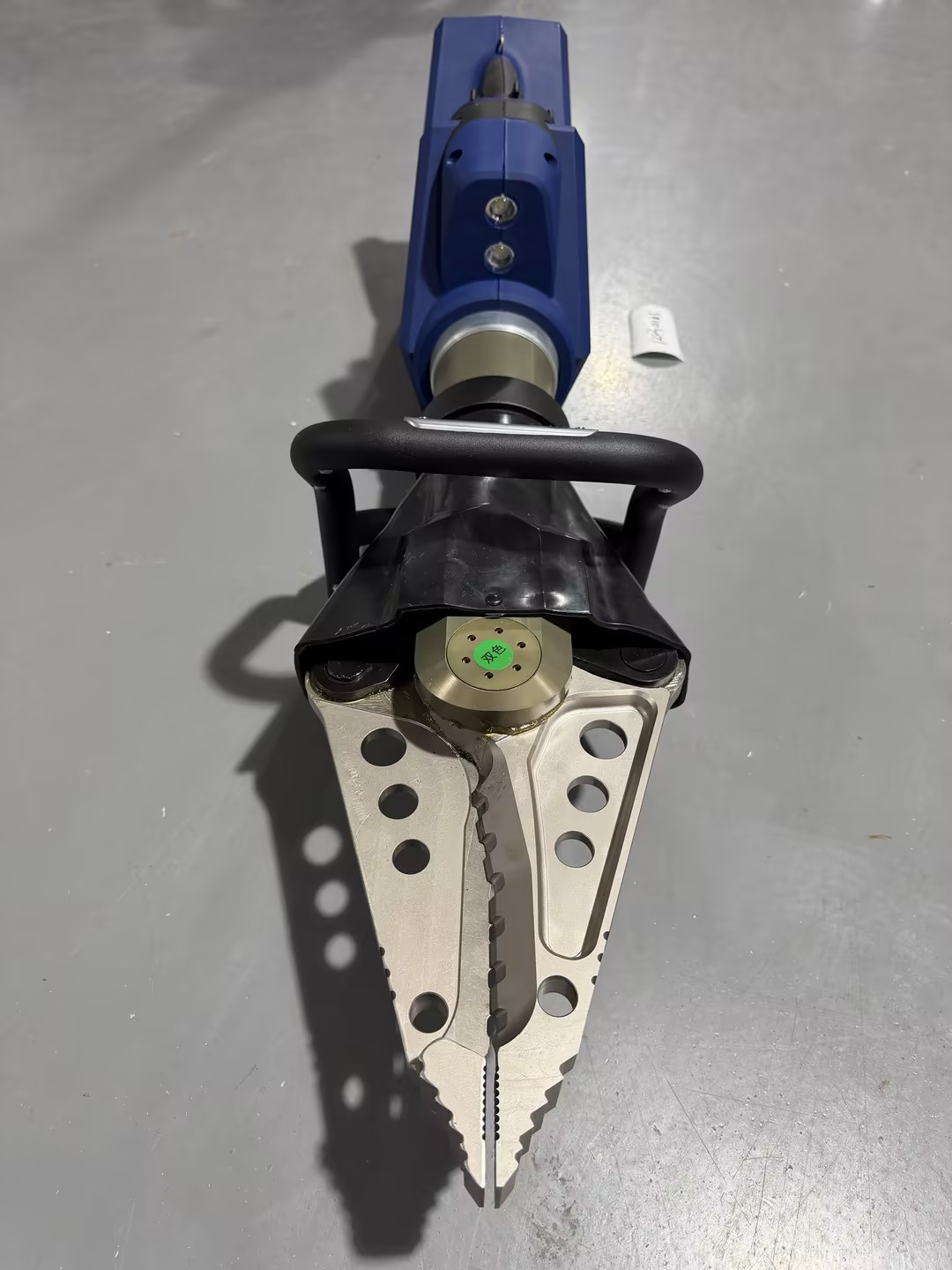

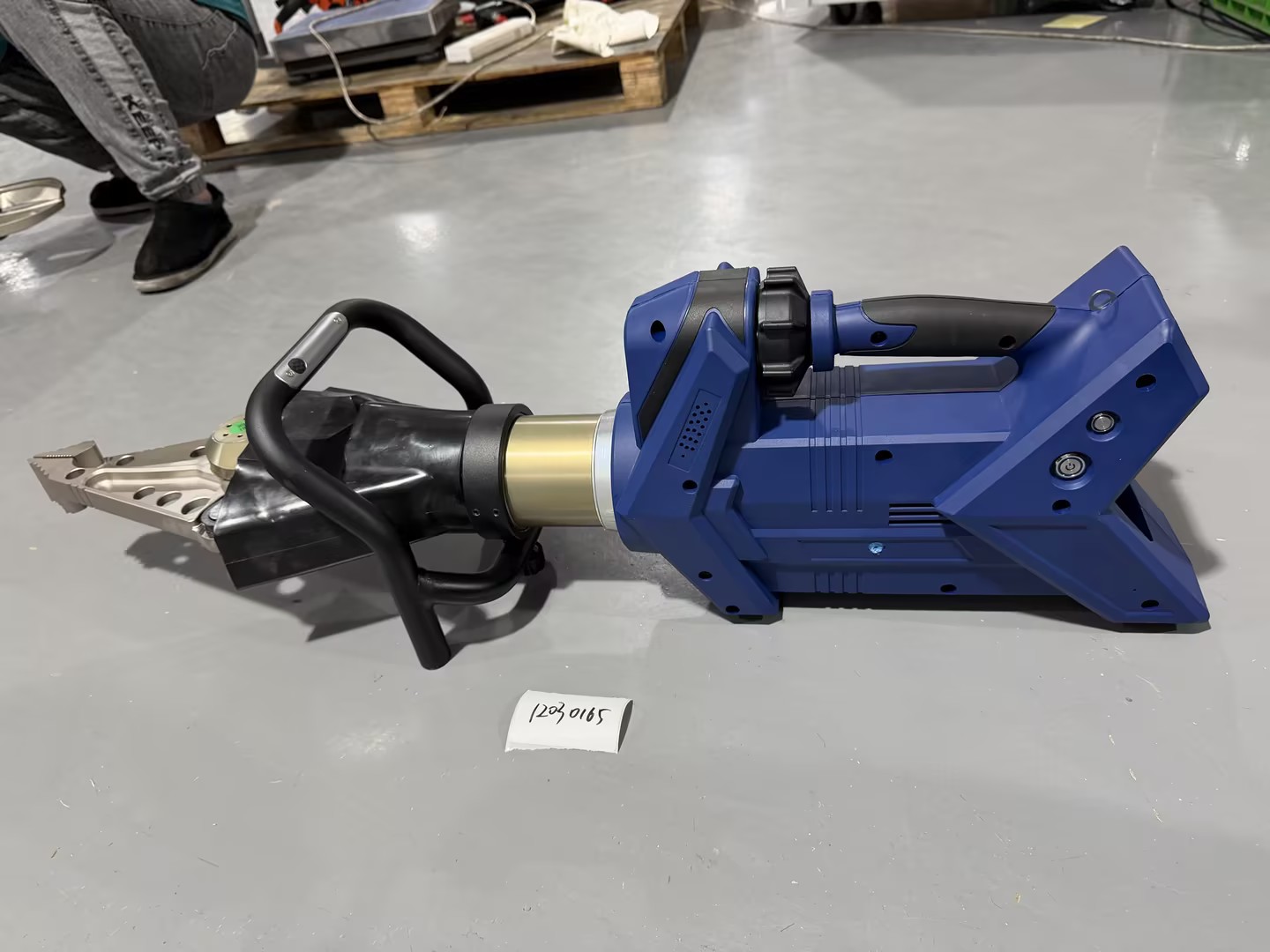

Combi tool SC370-E

Battery type DC 28V 5Ah

Rated working pressure 720bar

Max cutting force 940kN

Cutting capacity

Φ38mm Q235 round steel

20mm Q235 steel plate

Max spreading force 45-145kN

Max spreading distance 390mm

Max squeezing force≥153kN

Pulling force 95kN

Pulling distance 300mm

Net weight: 18.5 kg

Dimension:960x230x270mm

Packing:one pc of /Plastic box/cardboard ctn

2pcs of batteries,1 pc of charger,1 pc of belt

EN13204 approved

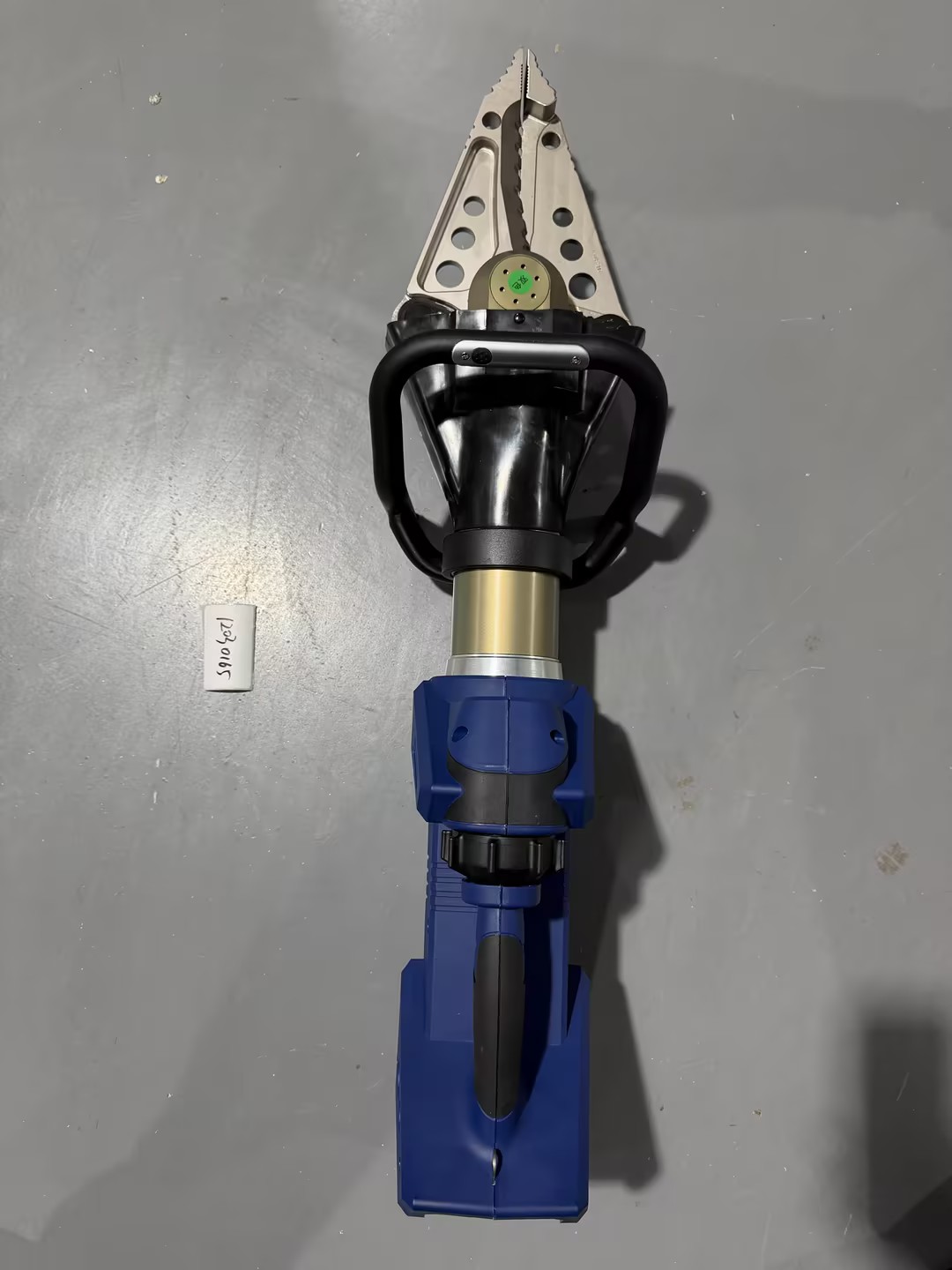

58b3028f-8c8e-4621-816c-a954564878c2

Medium-Sized Electro-Hydraulic Breaking Tool Set

Product Parameters

Product name	Battery hydraulic spreader and cutter
Battery type	DC 28V 5Ah
Rated working pressure	720bar
Max cutting force	380kN
Cutting capacity	∅32mm Q235 round steel ∅16mm Q235 steel plate
Max spreading force	58.07kN
Max spreading distance	360mm
Pulling force	58kN
Pulling distance	305mm
Weight	18.9kg（without battery）
Gross weight	34.4 kg
Machine Size	929x246x287mm
Carton size	1100x315x380 mm

Scenes Solutions

Various accidents, trafficaccident rescues, earthquakes, building collapsesand other disaster reliefsites are more suitable forlong-distance, high-alti-tude or high-altitude

Company Profile

ODE Technology Co., Ltd. mainly produces intelligent hydraulic tools, ultra-high precision hydraulic pumps, hydraulic motors, hydraulic control valves, hydraulic cylinders and all kinds of power hydraulic systems and other related products. The products are related to engineering and construction equipment, sea, land and air attack and demolition and rescue equipment, dismantling of end-of-life automobiles, cable and pipeline construction, ship projects, emergency protection and rescue in energy mining, industrial intelligent manufacturing, military equipment and other related supporting products in the field.

The company always adheres to the concept of steady operation, continuous innovation and open cooperation, has a strict quality management system, and its products have passed domestic and international certifications, such as CFFF, CE, RoHS, etc. The company has also passed the ISO9001:2000, ISO14001:2000 and ISO14001:2000 certification.
