Basic Working Principle Of Hydraulic Demolition Tools

Hydraulic demolition tools are a kind of professional equipment widely used in the fields of rescue, building demolition and industrial manufacturing. They can quickly and efficiently complete tasks such as metal cutting, object expansion, compression and clamping. These tools are based on hydraulic systems and convert power into mechanical motion through hydraulic transmission to achieve demolition functions. This article will introduce the basic working principle of hydraulic demolition tools in detail, including the composition of hydraulic systems, the power transmission process and the functional principle of typical tools.

1. Composition of hydraulic system

The core component of hydraulic demolition tools is the hydraulic system, which is mainly composed of the following parts:

Power source: The power of the hydraulic system is usually provided by an electric motor or an internal combustion engine, which generates hydraulic energy by driving a hydraulic pump.

Hydraulic pump: The hydraulic pump is responsible for extracting hydraulic oil from the oil storage tank and delivering it to the hydraulic pipeline after pressurization.

Control valve: The control valve is used to adjust the flow and direction of hydraulic oil to achieve different working modes (such as expansion, shearing or clamping).

Hydraulic cylinder: The hydraulic cylinder is the actuator of the hydraulic tool. It drives the piston to produce linear motion through the pressure of hydraulic oil, thereby driving the tool to complete the work.

Hydraulic oil pipe: The hydraulic oil pipe connects the power source and the tool body, serving as a transmission channel for hydraulic oil.

2. Power transmission process

The working principle of hydraulic demolition tools can be simply summarized as the process of hydraulic transmission:

Power generation: After the power source (such as an electric motor or an internal combustion engine) is started, it drives the hydraulic pump to work.

Hydraulic boost: The hydraulic pump pressurizes the hydraulic oil to generate high-pressure liquid and form hydraulic energy.

Hydraulic transmission: The high-pressure liquid is transported to the control valve through the hydraulic pipeline, and the flow direction and pressure of the hydraulic oil are adjusted according to the operation requirements.

Mechanical output: The hydraulic oil enters the hydraulic cylinder, pushes the piston rod to move linearly, and drives the mechanical structure of the tool to achieve demolition action.

This power transmission process has the advantages of low energy loss, precise control, and large output force, enabling hydraulic demolition tools to cope with various complex demolition tasks.

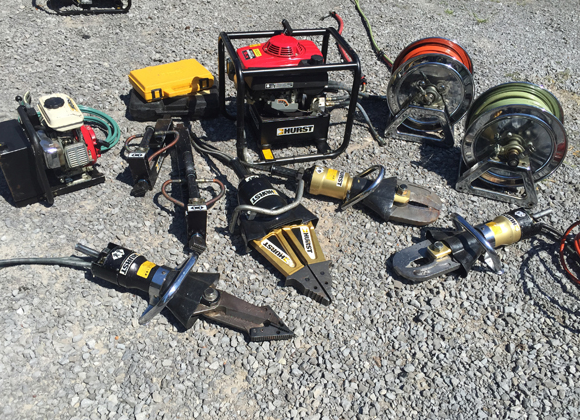

3. Functional principle of typical hydraulic demolition tools

There are many types of hydraulic demolition tools, and different tools have unique functions in specific applications. The following are some common tools and their basic working principles:

(1) Hydraulic shears

Hydraulic shears use hydraulic cylinders to drive the shear blades to close or open, and can cut hard materials such as metal bars, steel bars or vehicle bodies. The principle is to use the pressure of hydraulic oil to drive the piston to move, thereby achieving the output of shear force.

(2) Hydraulic expanders

Hydraulic expanders use hydraulic cylinders to drive the expansion arms to open or close, and are used to expand narrow spaces or pry open metal structures. The strong tension of the expander comes from the linear motion of the piston in the hydraulic cylinder.

(3) Hydraulic jacks

Hydraulic jacks are used to support or lift heavy objects. The principle is to use high-pressure liquid to push the piston rod of the hydraulic cylinder outward, thereby generating a strong lifting force.

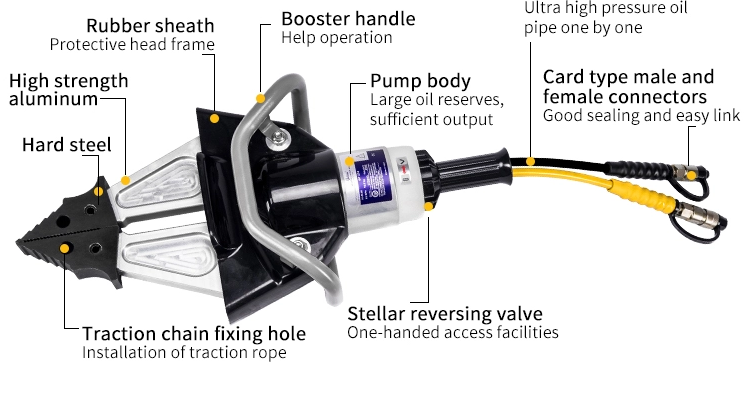

(4) Hydraulic combination tools

Hydraulic combination tools integrate shearing, expansion and clamping functions. A control valve is used to adjust the flow of hydraulic oil, so that different tasks can be quickly switched.

4. Advantages of hydraulic demolition tools

Hydraulic demolition tools have the following significant advantages:

Efficient and powerful: Hydraulic transmission can output great force, making it easy to complete complex demolition tasks.

Precise control: The control valve can be used to precisely adjust the tool movement, ensuring safe and efficient operation.

Strong adaptability: Hydraulic tools can work in small spaces and under high load conditions, and are widely used in rescue and industrial environments.
